WF4Py package tutorial and comparison with LAL, making the plots in Fig. 2 and 3 of arXiv:2207.06910¶
NOTE: to fully use this notebook a working installation of the packages \(\texttt{matplotlib}\), \(\texttt{astropy}\) and \(\texttt{PyCBC}\) is needed
First import some libraries¶
[1]:
import numpy as np
import time
import sys
import os
import matplotlib.pyplot as plt
from matplotlib import gridspec
from matplotlib import rc
rc('text', usetex=True)
from astropy.cosmology import Planck18
from WF4Py import waveforms as WF
from WF4Py import WFutils as utils
ourcodenameString = 'WF4Py'
import pycbc.waveform
import pycbc.types as pcbcdt
[2]:
def m1m2_from_Mceta(Mc, eta):
# Define a function to compute the component masses of a binary given its chirp mass and symmetric mass ratio
m1 = 0.5*(Mc/(eta**(3./5.)))*(1.+np.sqrt(1.-4.*eta))
m2 = 0.5*(Mc/(eta**(3./5.)))*(1.-np.sqrt(1.-4.*eta))
return m1, m2
Now we show how to use \(\texttt{WF4Py}\)¶
It is sufficient to choose the parameters of the source(s) to simulate and put them in a dictionary with the correct keys, e.g.¶
[3]:
zs = np.array([.2])
events = {'Mc':np.array([30])*(1.+zs), 'dL':(Planck18.luminosity_distance(zs).value/1000.),
'iota':np.array([.0]), 'eta':np.array([0.24]), 'chi1z':np.array([0.8]), 'chi2z':np.array([-0.8]),
'Lambda1':np.array([0.]), 'Lambda2':np.array([0.])}
But it is also possible to provide the component masses through the keys \(\color{red}{\rm 'm1'}\) and \(\color{red}{\rm 'm2'}\), the symmetric and antisymmetric spin components through the keys \(\color{red}{\rm 'chiS'}\) and \(\color{red}{\rm 'chiA'}\) and the combinations of adimensional tidal deformability parameters \(\tilde{\Lambda}, \delta\tilde{\Lambda}\), defined in arXiv:1402.5156, through the keys \(\color{red}{\rm 'LambdaTilde'}\) and \(\color{red}{\rm 'deltaLambda'}\)¶
Remember to express the masses in units of \(M_{\odot}\), and the luminosity distance in \(\rm Gpc\)¶
Let us start with the model \(\texttt{IMRPhenomD}\), and reproduce the corresponding plot of comparison with \(\texttt{LAL}\)¶
First we initialise the waveform, compute the maximum frequency, and build the frequency grid…¶
[4]:
tmpWF = WF.IMRPhenomD()
fcut = tmpWF.fcut(**events)
fminarr = np.full(fcut.shape, 5)
fgrids = np.geomspace(fminarr, fcut, num=int(1000))
… then computing the amplitude and phase of the gravitational wave signal produced by this system according to the chosen waveform model is as easy as¶
[5]:
myampl = tmpWF.Ampl(fgrids, **events)
myphase = tmpWF.Phi(fgrids, **events)
We then build the same signal also with \(\texttt{LAL}\) through \(\texttt{PyCBC}\), and plot the two¶
[6]:
m1s, m2s = m1m2_from_Mceta(events['Mc'], events['eta'])
hp, hc = pycbc.waveform.get_fd_waveform_sequence(approximant='IMRPhenomD',
mass1=m1s,
mass2=m2s,
spin1z=events['chi1z'],
spin2z=events['chi2z'],
sample_points = pcbcdt.array.Array(fgrids[:,0]),
distance=events['dL']*1000.)
PyCBCwfAmpl = np.array(abs(hp))
PyCBCwfPhase = np.array(hp/abs(hp))

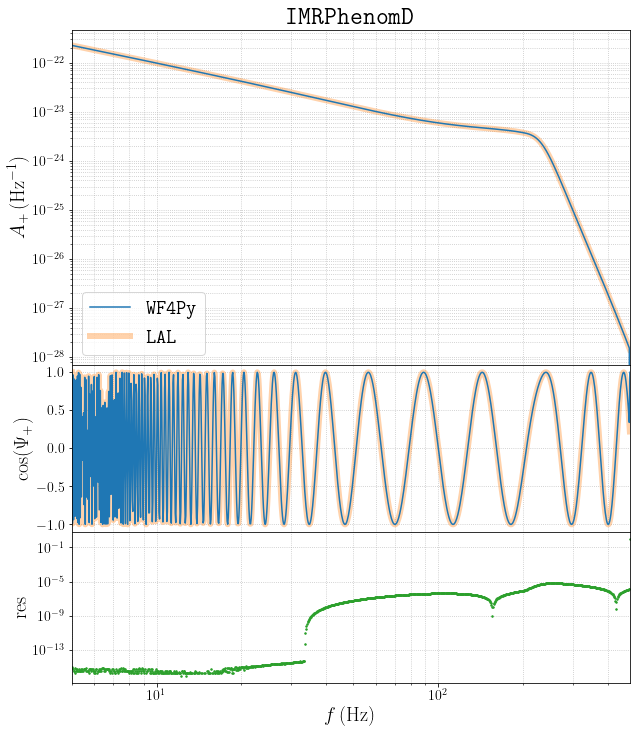

[7]:
fig = plt.figure(figsize=(10,12))
gs = gridspec.GridSpec(3,1,height_ratios=[2,1,.9])
ax1 = plt.subplot(gs[0])
ax2 = plt.subplot(gs[1], sharex=ax1)
ax3 = plt.subplot(gs[2], sharex=ax1)
ax1.plot(fgrids, PyCBCwfAmpl, 'C1', label=r'$\texttt{LAL}$', alpha=.35, linewidth=6.)
ax1.plot(fgrids, myampl, 'C0', label=r'$\texttt{%s}$'%ourcodenameString)
ax1.set_yscale('log')
ax1.set_ylabel(r'$A_+ \, ({\rm Hz}^{-1})$',fontsize=20)
ax1.grid()
ax2.plot(fgrids, PyCBCwfPhase.real, 'C1', alpha=.35, linewidth=6.)
ax2.plot(fgrids[:,0], np.cos(myphase[:,0]), 'C0',)
ax2.set_ylabel(r'$\cos(\Psi_{+})$', fontsize=20)
plt.xlabel(r'$f \, (\rm Hz)$', fontsize=20)
yticks = ax2.yaxis.get_major_ticks()
yticks[-1].label1.set_visible(False)
ax3.plot(fgrids[:,0], abs(1.-(myampl[:,0])/(PyCBCwfAmpl)), '.', color='C2', ms=3)
ax3.set_ylabel(r'$\rm res$', fontsize=20)
ax1.set_xscale('log')
ax3.set_yscale('log')
plt.subplots_adjust(hspace=0.)
handles, labels = ax1.get_legend_handles_labels()
ax1.legend(handles[::-1], labels[::-1], loc='lower left', fontsize=20)
ax1.tick_params(axis='both', which='major', labelsize=14)
ax1.tick_params(axis='both', which='minor', labelsize=14)
ax2.tick_params(axis='both', which='major', labelsize=14)
ax2.tick_params(axis='both', which='minor', labelsize=14)
ax3.tick_params(axis='both', which='major', labelsize=14)
ax3.tick_params(axis='both', which='minor', labelsize=14)
plt.xlim(min(fgrids), max(fgrids))
ax1.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax2.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax3.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax1.set_title(r"{$\bf \texttt{IMRPhenomD}$}", fontsize=25)
plt.show()
The discrepancy mainly arises from a difference between \(\texttt{C}\) and \(\texttt{Python}\) in the interpolation needed to compute the ringdown frequency¶
The proof for this can be obtained using the \(\texttt{IMRPhenomXAS}\) waveform model, which does not rely on any inyerpolation.¶
Using the same event as before¶
[8]:
# Note that this model has various versions for both the phase and the amplitude
tmpWF = WF.IMRPhenomXAS(InsPhaseVersion=104, IntPhaseVersion=105, IntAmpVersion=104)
fcut = tmpWF.fcut(**events)
fminarr = np.full(fcut.shape, 5)
fgrids = np.geomspace(fminarr, fcut, num=int(1000))
myampl = tmpWF.Ampl(fgrids, **events)
myphase = tmpWF.Phi(fgrids, **events)
[9]:
m1s, m2s = m1m2_from_Mceta(events['Mc'], events['eta'])
hp, hc = pycbc.waveform.get_fd_waveform_sequence(approximant='IMRPhenomXAS',
mass1=m1s,
mass2=m2s,
spin1z=events['chi1z'],
spin2z=events['chi2z'],
sample_points = pcbcdt.array.Array(fgrids[:,0]),
distance=events['dL']*1000.)
PyCBCwfAmpl = np.array(abs(hp))
PyCBCwfPhase = np.array(hp/abs(hp))
[10]:
fig = plt.figure(figsize=(10,12))
gs = gridspec.GridSpec(3,1,height_ratios=[2,1,.9])
ax1 = plt.subplot(gs[0])
ax2 = plt.subplot(gs[1], sharex=ax1)
ax3 = plt.subplot(gs[2], sharex=ax1)
ax1.plot(fgrids, PyCBCwfAmpl, 'C1', label=r'$\texttt{LAL}$', alpha=.35, linewidth=6.)
ax1.plot(fgrids, myampl, 'C0', label=r'$\texttt{%s}$'%ourcodenameString)
ax1.set_yscale('log')
ax1.set_ylabel(r'$A_+ \, ({\rm Hz}^{-1})$',fontsize=20)
ax1.grid()
ax2.plot(fgrids, PyCBCwfPhase.real, 'C1', alpha=.35, linewidth=6.)
ax2.plot(fgrids[:,0], np.cos(myphase[:,0]), 'C0',)
ax2.set_ylabel(r'$\cos(\Psi_{+})$', fontsize=20)
plt.xlabel(r'$f \, (\rm Hz)$', fontsize=20)
yticks = ax2.yaxis.get_major_ticks()
yticks[-1].label1.set_visible(False)
ax3.plot(fgrids[:,0], abs(1.-(myampl[:,0])/(PyCBCwfAmpl)), '.', color='C2', ms=3)
ax3.set_ylabel(r'$\rm res$', fontsize=20)
ax1.set_xscale('log')
ax3.set_yscale('log')
plt.subplots_adjust(hspace=0.)
handles, labels = ax1.get_legend_handles_labels()
ax1.legend(handles[::-1], labels[::-1], loc='lower left', fontsize=20)
ax1.tick_params(axis='both', which='major', labelsize=14)
ax1.tick_params(axis='both', which='minor', labelsize=14)
ax2.tick_params(axis='both', which='major', labelsize=14)
ax2.tick_params(axis='both', which='minor', labelsize=14)
ax3.tick_params(axis='both', which='major', labelsize=14)
ax3.tick_params(axis='both', which='minor', labelsize=14)
plt.xlim(min(fgrids), max(fgrids))
ax1.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax2.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax3.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax1.set_title(r"{$\bf \texttt{IMRPhenomXAS}$}", fontsize=25)
plt.show()
Now the two agree almost at machine precision!¶
Running on multiple events, which is not possible in \(\texttt{PyCBC}\) being based on a \(\texttt{C}\) code, is as easy as¶
[11]:
zs = np.array([.2, .5, .7])
events = {'Mc':np.array([30, 45, 60])*(1.+zs),
'dL':(Planck18.luminosity_distance(zs).value/1000.),
'iota':np.array([.0, .4, np.pi]),
'eta':np.array([0.24, .23, .2499]),
'chi1z':np.array([0.8, .5, 0.]),
'chi2z':np.array([-0.8, 0., -.2]),}
[12]:
tmpWF = WF.IMRPhenomD()
fcut = tmpWF.fcut(**events)
print('The cut frequencies are computed all together, and are %s'%fcut)
fminarr = np.full(fcut.shape, 5)
fgrids = np.geomspace(fminarr, fcut, num=int(1000))
print('Notice also that now there is one grid per event, thus fgrids has shape %s'%str(fgrids.shape))
The cut frequencies are computed all together, and are [479.07632324 249.06539571 173.23675714]
Notice also that now there is one grid per event, thus fgrids has shape (1000, 3)
[13]:
myampl = tmpWF.Ampl(fgrids, **events)
myphase = tmpWF.Phi(fgrids, **events)
print('Now thus myampl and myphase contain amplitudes and phases for all the events, having the same shape as fgrids, i.e. %s'%str(myampl.shape))
Now thus myampl and myphase contain amplitudes and phases for all the events, having the same shape as fgrids, i.e. (1000, 3)
Now we can do the same for \(\texttt{IMRPhenomD\_NRTidalv2}\), including also the tidal deformabilities¶
[14]:
zs = np.array([.1])
events = {'Mc':np.array([1.2])*(1.+zs), 'dL':(Planck18.luminosity_distance(zs).value/1000.),
'iota':np.array([.0]), 'eta':np.array([0.25]), 'chi1z':np.array([0.05]), 'chi2z':np.array([0.]),
'Lambda1':np.array([500.]), 'Lambda2':np.array([500.])}
[15]:
tmpWF = WF.IMRPhenomD_NRTidalv2()
fcut = tmpWF.fcut(**events)
fcut = np.where(fcut>2055, 2055, fcut)
fminarr = np.full(fcut.shape, 5)
fgrids = np.geomspace(fminarr, fcut, num=int(1000))
print(fcut)
[2055.]
[16]:
myampl = tmpWF.Ampl(fgrids, **events)
myphase = tmpWF.Phi(fgrids, **events)
[17]:
m1s, m2s = m1m2_from_Mceta(events['Mc'], events['eta'])
hp, hc = pycbc.waveform.get_fd_waveform_sequence(approximant='IMRPhenomD_NRTidalv2',
mass1=m1s,
mass2=m2s,
spin1z=events['chi1z'],
spin2z=events['chi2z'],
lambda1=float(events['Lambda1']),
lambda2=float(events['Lambda2']),
sample_points = pcbcdt.array.Array(fgrids[:,0]),
distance=events['dL']*1000.)
PyCBCwfAmpl = np.array(abs(hp))
PyCBCwfPhase = np.array(hp/abs(hp))

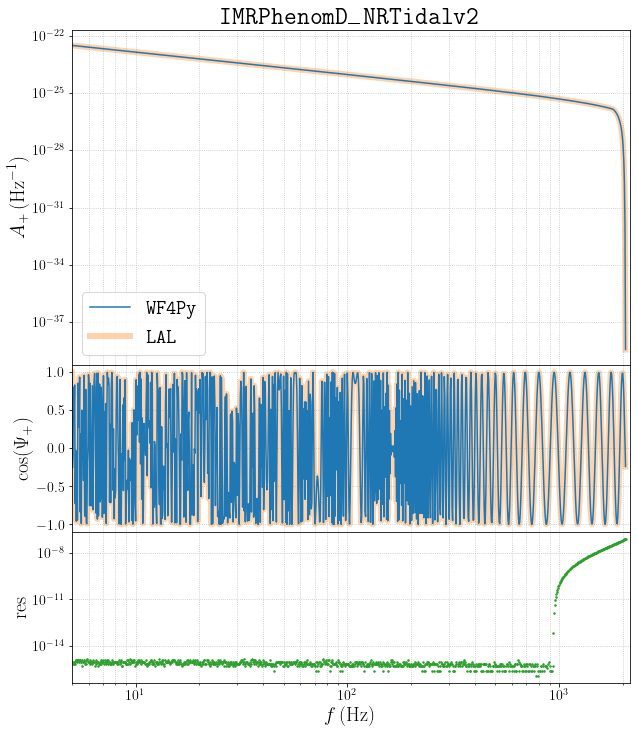

[18]:
fig = plt.figure(figsize=(10,12))
gs = gridspec.GridSpec(3,1,height_ratios=[2,1,.9])
ax1 = plt.subplot(gs[0])
ax2 = plt.subplot(gs[1], sharex=ax1)
ax3 = plt.subplot(gs[2], sharex=ax1)
ax1.plot(fgrids, PyCBCwfAmpl, 'C1', label=r'$\texttt{LAL}$', alpha=.35, linewidth=6.)
ax1.plot(fgrids, myampl, 'C0', label=r'$\texttt{%s}$'%ourcodenameString)
ax1.set_yscale('log')
ax1.set_ylabel(r'$A_+ \, ({\rm Hz}^{-1})$',fontsize=20)
ax1.grid()
ax2.plot(fgrids, PyCBCwfPhase.real, 'C1', alpha=.35, linewidth=6.)
ax2.plot(fgrids[:,0], np.cos(myphase[:,0]), 'C0',)
ax2.set_ylabel(r'$\cos(\Psi_{+})$', fontsize=20)
plt.xlabel(r'$f \, (\rm Hz)$', fontsize=20)
yticks = ax2.yaxis.get_major_ticks()
yticks[-1].label1.set_visible(False)
ax3.plot(fgrids[:,0], abs(1.-(myampl[:,0])/(PyCBCwfAmpl)), '.', color='C2', ms=3)
ax3.set_ylabel(r'$\rm res$', fontsize=20)
ax1.set_xscale('log')
ax3.set_yscale('log')
plt.subplots_adjust(hspace=0.)
handles, labels = ax1.get_legend_handles_labels()
ax1.legend(handles[::-1], labels[::-1], loc='lower left', fontsize=20)
ax1.tick_params(axis='both', which='major', labelsize=14)
ax1.tick_params(axis='both', which='minor', labelsize=14)
ax2.tick_params(axis='both', which='major', labelsize=14)
ax2.tick_params(axis='both', which='minor', labelsize=14)
ax3.tick_params(axis='both', which='major', labelsize=14)
ax3.tick_params(axis='both', which='minor', labelsize=14)
plt.xlim(min(fgrids), max(fgrids)+100)
ax1.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax2.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax3.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax1.set_title(r"{$\bf \texttt{IMRPhenomD\rule{.4cm}{1pt}\,NRTidalv2}$}", fontsize=25)
plt.show()
Now we switch to \(\texttt{IMRPhenomHM}\), which includes the contribution of sub-dominant modes, being thus more delicate¶
In this case passing the inclination angle is compulsory¶
[19]:
zs = np.array([.1])
events = {'Mc':np.array([40])*(1.+zs), 'dL':(Planck18.luminosity_distance(zs).value/1000.),
'iota':np.array([.3]), 'eta':np.array([0.24]),'chi1z':np.array([0.8]), 'chi2z':np.array([0.8])}
[20]:
tmpWF = WF.IMRPhenomHM()
fcut = tmpWF.fcut(**events)
fminarr = np.full(fcut.shape, 5)
fgrids = np.geomspace(fminarr, fcut, num=int(1000))
fcut
[20]:
array([391.97153719])
In this case we can proceed as before, but the outputs will be dictionaries conaining the amplitudes and phases of the various modes¶
[21]:
myampl = tmpWF.Ampl(fgrids, **events)
myphase = tmpWF.Phi(fgrids, **events)
print('myampl is a dictionary with '+str(myampl.keys()))
fig, ax = plt.subplots(figsize=(12,6))
for key in myampl.keys():
ax.plot(fgrids, myampl[key], label=r'${\rm Mode} \ %s$'%key)
ax.set_xscale('log')
ax.set_yscale('log')
ax.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax.set_title(r"\textrm{Amplitudes of the various modes}", fontsize=25)
ax.legend(loc='lower left', fontsize=20, bbox_to_anchor=(1, 0.5))
ax.tick_params(axis='both', which='major', labelsize=14)
ax.tick_params(axis='both', which='minor', labelsize=14)
ax.set_xlabel(r'$f \, (\rm Hz)$', fontsize=20)
ax.set_ylabel(r'$A \, ({\rm Hz}^{-1})$',fontsize=20)
plt.show()
myampl is a dictionary with dict_keys(['21', '22', '32', '33', '43', '44'])
It is then possible to combine all the modes with the provided function¶
[22]:
myhp, myhc = utils.Add_Higher_Modes(myampl, myphase, events['iota'])
myampl = np.abs(myhp)
myphase = (myhp/myampl).real
Given the bigger amount of time needed to compute higher modes, we also provide a faster implementation, fully vectorised, which does not rely on for loops, and can be of fundamental importance when dealing with large catalogs¶
[23]:
%%time
myhp, myhc = tmpWF.hphc(fgrids, **events)
myampl = np.abs(myhp)
myphase = (myhp/myampl).real
CPU times: user 13.5 ms, sys: 1.5 ms, total: 15 ms
Wall time: 13.8 ms
[24]:
m1s, m2s = m1m2_from_Mceta(events['Mc'], events['eta'])
hp, hc = pycbc.waveform.get_fd_waveform_sequence(approximant='IMRPhenomHM',
mass1=m1s,
mass2=m2s,
spin1z=events['chi1z'],
spin2z=events['chi2z'],
inclination= events['iota'],
sample_points = pcbcdt.array.Array(fgrids[:,0]),
distance=events['dL']*1000.)
PyCBCwfAmpl = np.array(abs(hp))
PyCBCwfPhase = np.array(hp/abs(hp))
[25]:
fig = plt.figure(figsize=(10,12))
gs = gridspec.GridSpec(3,1,height_ratios=[2,1,.9])
ax1 = plt.subplot(gs[0])
ax2 = plt.subplot(gs[1], sharex=ax1)
ax3 = plt.subplot(gs[2], sharex=ax1)
ax1.plot(fgrids, PyCBCwfAmpl, 'C1', label=r'$\texttt{LAL}$', alpha=.35, linewidth=6.)
ax1.plot(fgrids, myampl, 'C0', label=r'$\texttt{%s}$'%ourcodenameString)
ax1.set_yscale('log')
ax1.set_ylabel(r'$A_+ \, ({\rm Hz}^{-1})$',fontsize=20)
ax1.grid()
ax2.plot(fgrids, PyCBCwfPhase.real, 'C1', alpha=.35, linewidth=6.)
ax2.plot(fgrids[:,0], myphase[:,0], 'C0',)
ax2.set_ylabel(r'$\cos(\Psi_{+})$', fontsize=20)
plt.xlabel(r'$f \, (\rm Hz)$', fontsize=20)
yticks = ax2.yaxis.get_major_ticks()
yticks[-1].label1.set_visible(False)
ax3.plot(fgrids[:,0], abs(1.-(myampl[:,0])/(PyCBCwfAmpl)), '.', color='C2', ms=3)
ax3.set_ylabel(r'$\rm res$', fontsize=20)
ax1.set_xscale('log')
ax3.set_yscale('log')
plt.subplots_adjust(hspace=0.)
handles, labels = ax1.get_legend_handles_labels()
ax1.legend(handles[::-1], labels[::-1], loc='lower left', fontsize=20)
ax1.tick_params(axis='both', which='major', labelsize=14)
ax1.tick_params(axis='both', which='minor', labelsize=14)
ax2.tick_params(axis='both', which='major', labelsize=14)
ax2.tick_params(axis='both', which='minor', labelsize=14)
ax3.tick_params(axis='both', which='major', labelsize=14)
ax3.tick_params(axis='both', which='minor', labelsize=14)
plt.xlim(min(fgrids), max(fgrids))
ax1.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax2.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax3.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax1.set_title(r"{$\bf \texttt{IMRPhenomHM}$}", fontsize=25)
plt.show()
Finally we use \(\texttt{IMRPhenomNSBH}\)¶
[26]:
zs = np.array([.2])
events = {'Mc':np.array([3.5])*(1.+zs), 'dL':(Planck18.luminosity_distance(zs).value/1000.),
'iota':np.array([.0]),'eta':np.array([0.08]), 'chi1z':np.array([0.3]), 'chi2z':np.array([0.]),
'Lambda1':np.array([0.]), 'Lambda2':np.array([400.])}
[27]:
tmpWF = WF.IMRPhenomNSBH()
fcut = tmpWF.fcut(**events)
fminarr = np.full(fcut.shape, 5)
fgrids = np.geomspace(fminarr, fcut, num=int(1000))
print(fcut)
Pre-computed xi_tide grid is present. Loading...
Attributes of pre-computed grid:
[('Compactness_min', 0.1), ('npoints', 200), ('q_max', 100.0)]
[2124.14991938]
[28]:
myampl = tmpWF.Ampl(fgrids, **events)
myphase = tmpWF.Phi(fgrids, **events)
[29]:
Mtot = events['Mc']/(events['eta']**(3./5.))
m1s, m2s = m1m2_from_Mceta(events['Mc'], events['eta'])
hp, hc = pycbc.waveform.get_fd_waveform_sequence(approximant='IMRPhenomNSBH',
mass1=m1s,
mass2=m2s,
spin1z=events['chi1z'],
spin2z=events['chi2z'],
lambda2=float(events['Lambda2']),
sample_points = pcbcdt.array.Array(fgrids[:,0]),
distance=events['dL']*1000.)
PyCBCwfAmpl = np.array(abs(hp))
PyCBCwfPhase = np.array(hp/abs(hp))

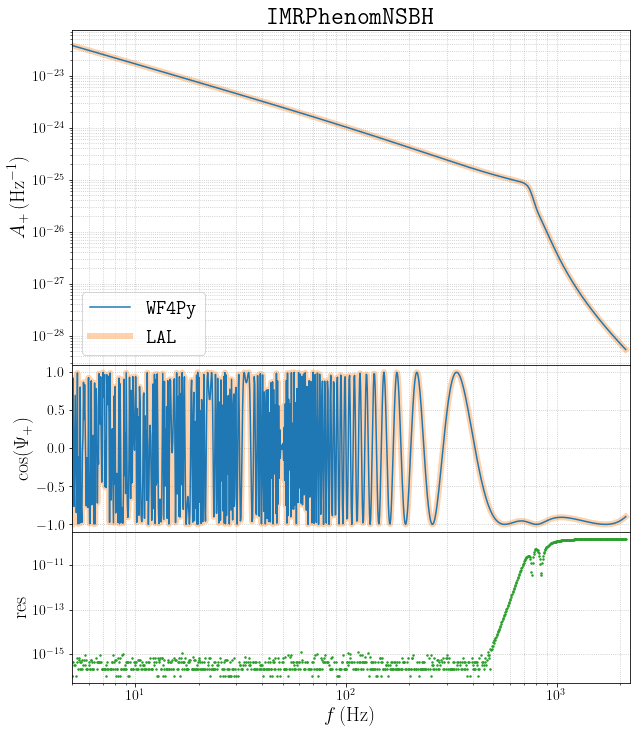

[30]:
fig = plt.figure(figsize=(10,12))
gs = gridspec.GridSpec(3,1,height_ratios=[2,1,.9])
ax1 = plt.subplot(gs[0])
ax2 = plt.subplot(gs[1], sharex=ax1)
ax3 = plt.subplot(gs[2], sharex=ax1)
ax1.plot(fgrids, PyCBCwfAmpl, 'C1', label=r'$\texttt{LAL}$', alpha=.35, linewidth=6.)
ax1.plot(fgrids, myampl, 'C0', label=r'$\texttt{%s}$'%ourcodenameString)
ax1.set_yscale('log')
ax1.set_ylabel(r'$A_+ \, ({\rm Hz}^{-1})$',fontsize=20)
ax1.grid()
ax2.plot(fgrids, PyCBCwfPhase.real, 'C1', alpha=.35, linewidth=6.)
ax2.plot(fgrids[:,0], np.cos(myphase[:,0]), 'C0',)
ax2.set_ylabel(r'$\cos(\Psi_{+})$', fontsize=20)
plt.xlabel(r'$f \, (\rm Hz)$', fontsize=20)
yticks = ax2.yaxis.get_major_ticks()
yticks[-1].label1.set_visible(False)
ax3.plot(fgrids[:,0], abs(1.-(myampl[:,0])/(PyCBCwfAmpl)), '.', color='C2', ms=3)
ax3.set_ylabel(r'$\rm res$', fontsize=20)
ax1.set_xscale('log')
ax3.set_yscale('log')
plt.subplots_adjust(hspace=0.)
handles, labels = ax1.get_legend_handles_labels()
ax1.legend(handles[::-1], labels[::-1], loc='lower left', fontsize=20)
ax1.tick_params(axis='both', which='major', labelsize=14)
ax1.tick_params(axis='both', which='minor', labelsize=14)
ax2.tick_params(axis='both', which='major', labelsize=14)
ax2.tick_params(axis='both', which='minor', labelsize=14)
ax3.tick_params(axis='both', which='major', labelsize=14)
ax3.tick_params(axis='both', which='minor', labelsize=14)
plt.xlim(min(fgrids), max(fgrids)+100)
ax1.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax2.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax3.grid(True, which='both', ls='dotted', linewidth='0.8', alpha=.8)
ax1.set_title(r"{$\bf \texttt{IMRPhenomNSBH}$}", fontsize=25)
plt.show()
